Automatic dispensing machine

You are here：Home >> Products >> Automation Equipment >> Automatic dispensing...

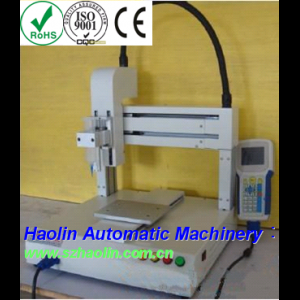

Name：Automatic Dispensing Machine AD-5515-S/T

Model：AD-5515-S/T

Description Parameter

Apply solder glue, COB vinyl, red glue, paste, UV glue, silicon, EPOXY, silver glue, AB glue, conductive plastic, aluminum heat sink paste, instant glue dispensing.

With draw points, lines, rectangles, arcs, circles, irregular curves and three-axis continuous interpolation function;

With the overall correction, regional correction area array functions, simple and quick machine operation;

Based on customer needs, the installation of table positioning pin, plastic tube fixtures or floor heating temperature control device;

Optional two-headed jig spinner cones, double simultaneous operation, doubling efficiency;

Optional 300CC large plastic tube or plastic pressure tank storage operations, saving time for glue.

Technical parameters:

加工范圍	X軸	500 mm
	Y軸	500 mm
	Z軸	150 mm
機械重復精度		±0.1 mm
顯示方式		教導盒LCD（320x240）
驅動電機		伺服或步進
外形尺寸（長x寬x高）		450x450x360 mm
